Project Pictures

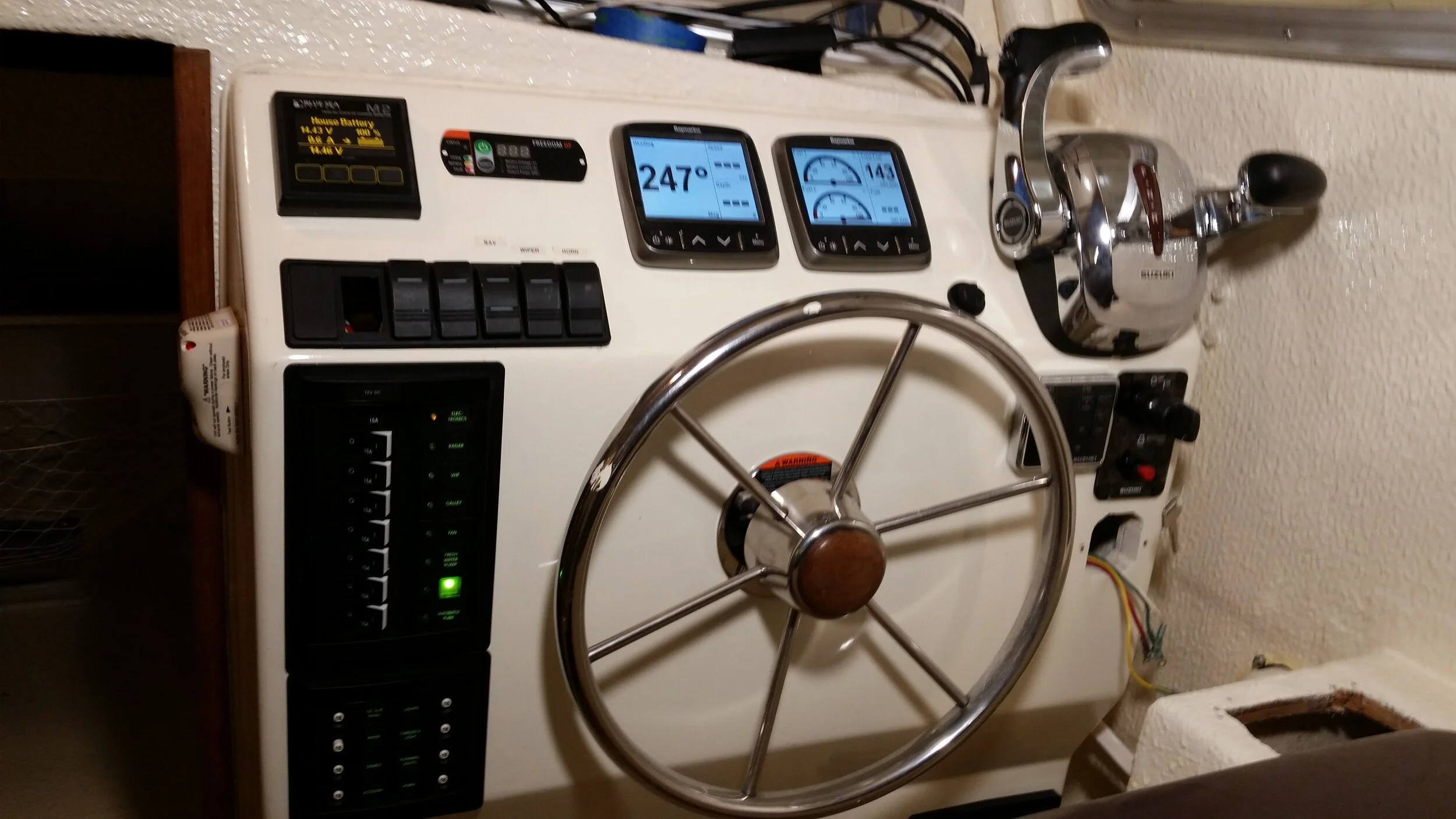

New helm with all new breakers, switching, using N2K instruments instead of dedicated engine gages.

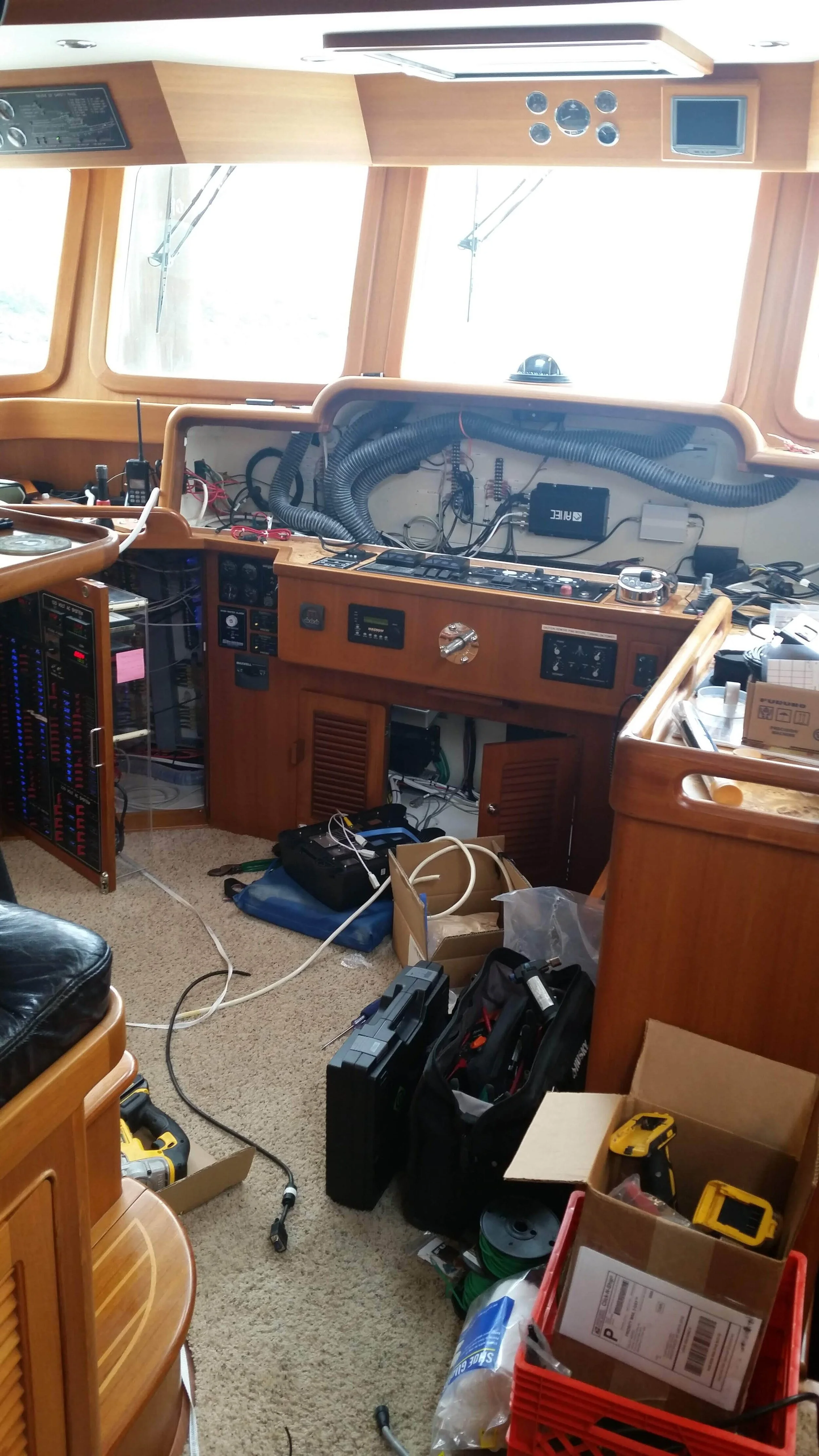

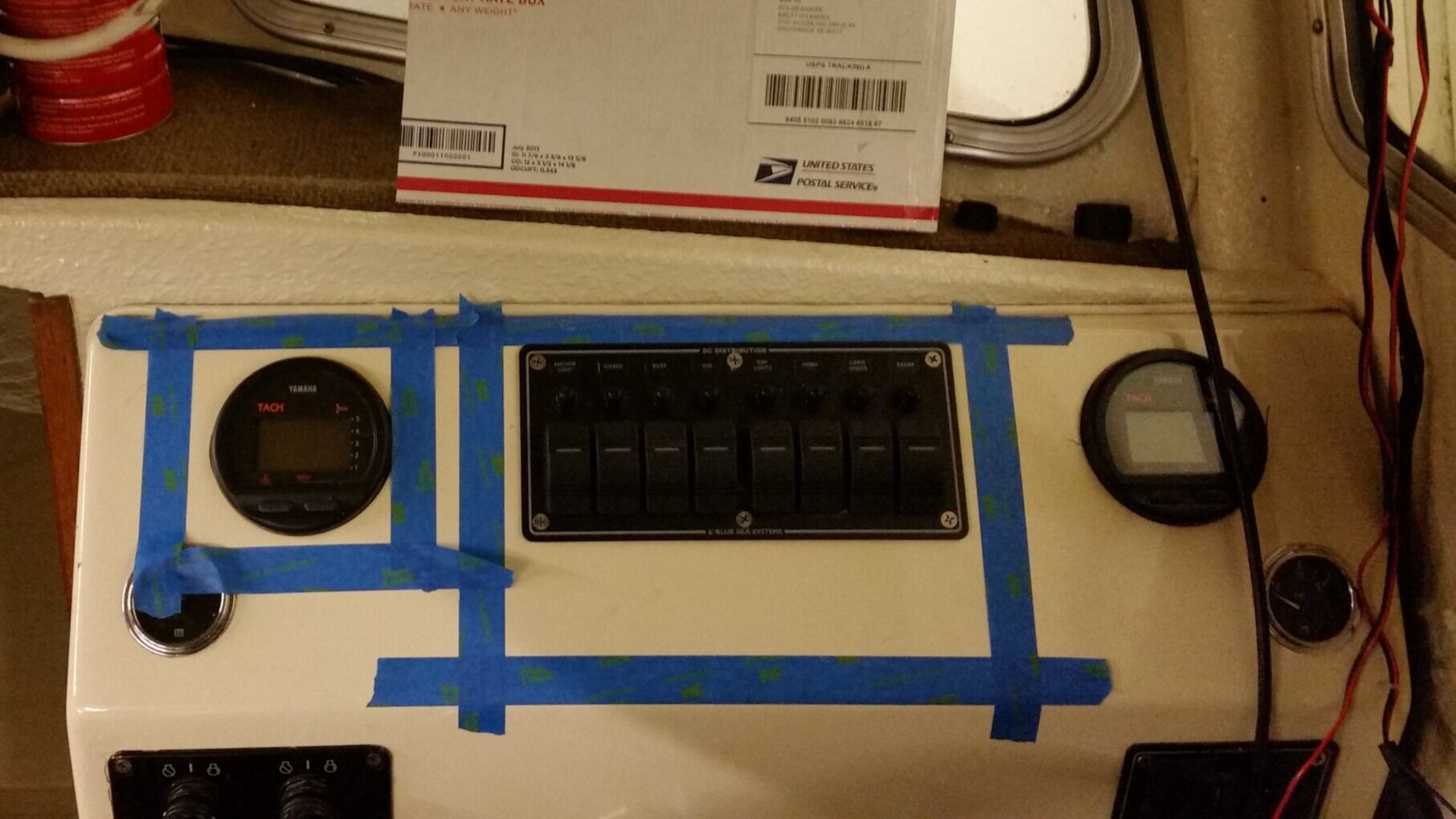

Original helm with thoughts of layout in tape for customer review.

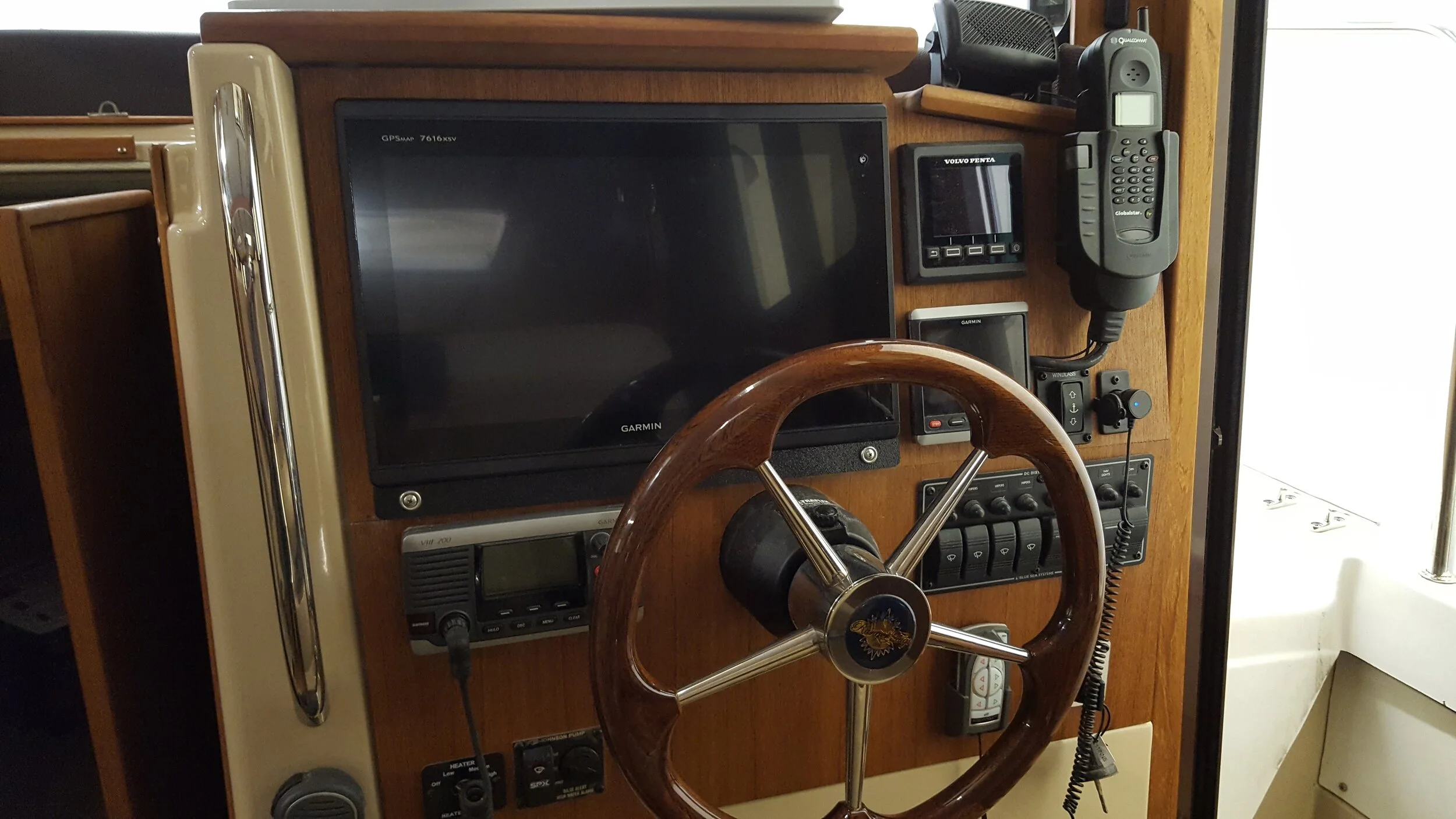

Completed helm re-fit.
This is what the helm looked like before rebuild.

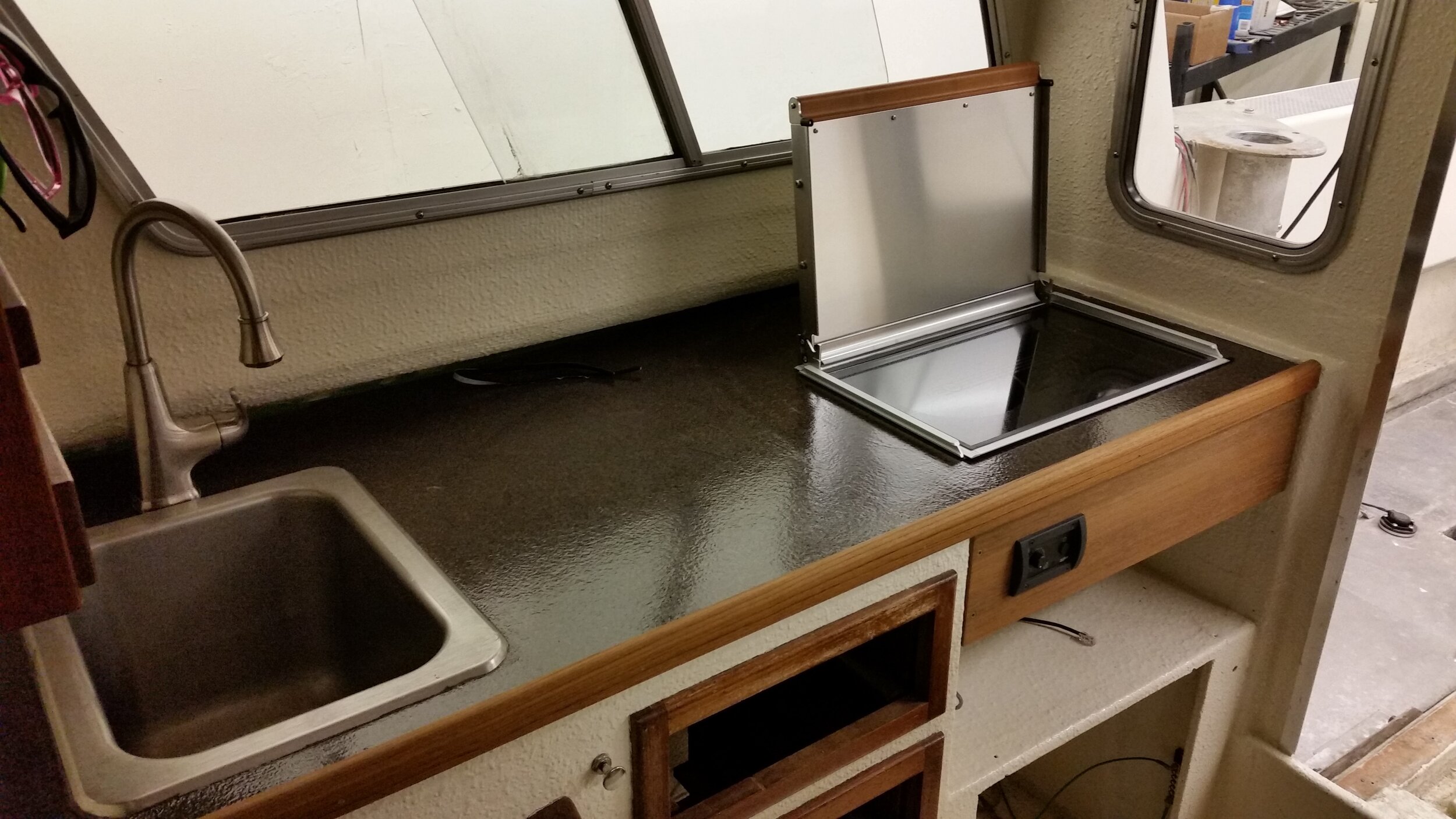

Wallas Nordic Dt diesel cooktop/heater installed in place of the old stove. New teak accents.

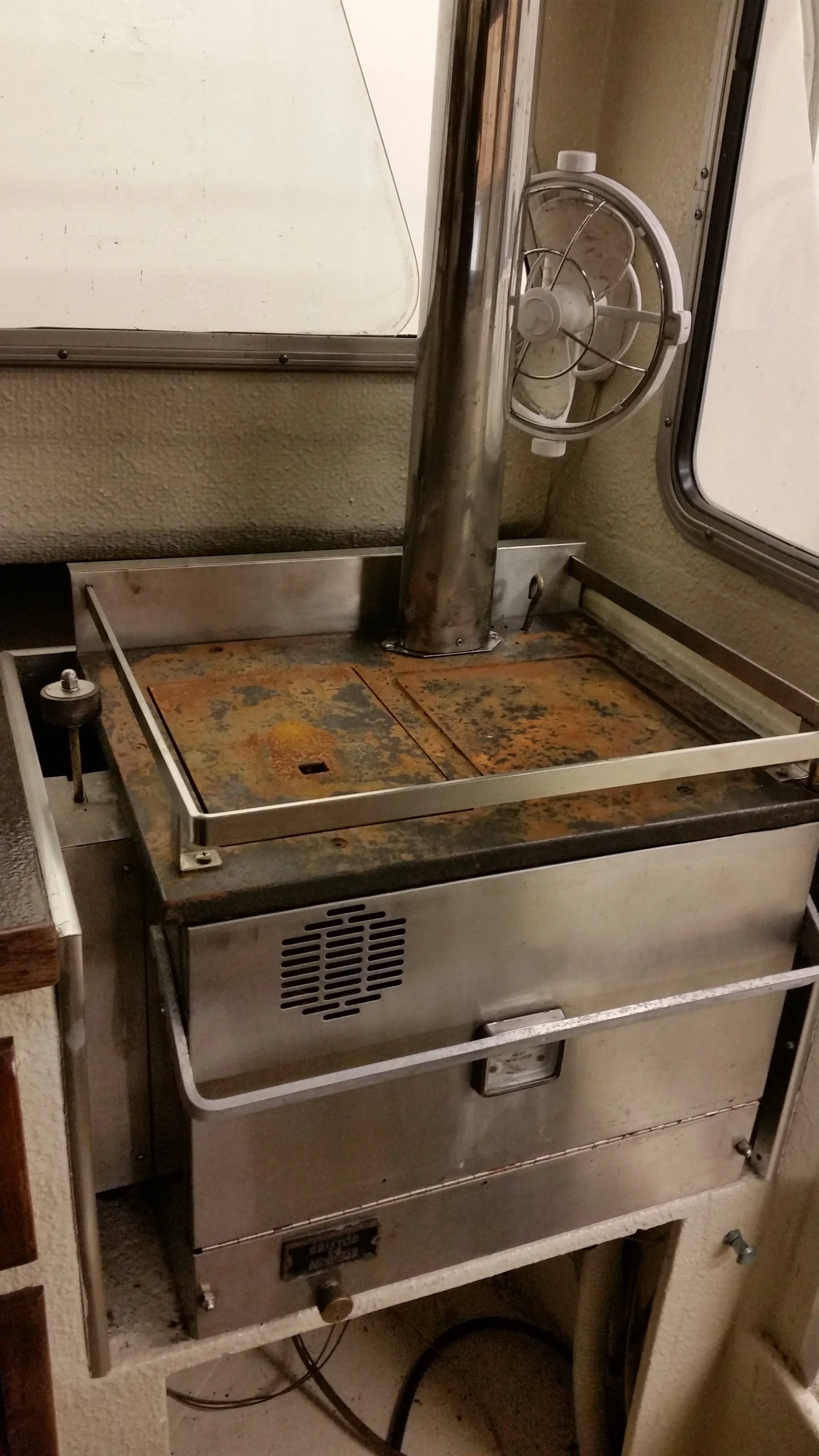

Original drip diesel stove

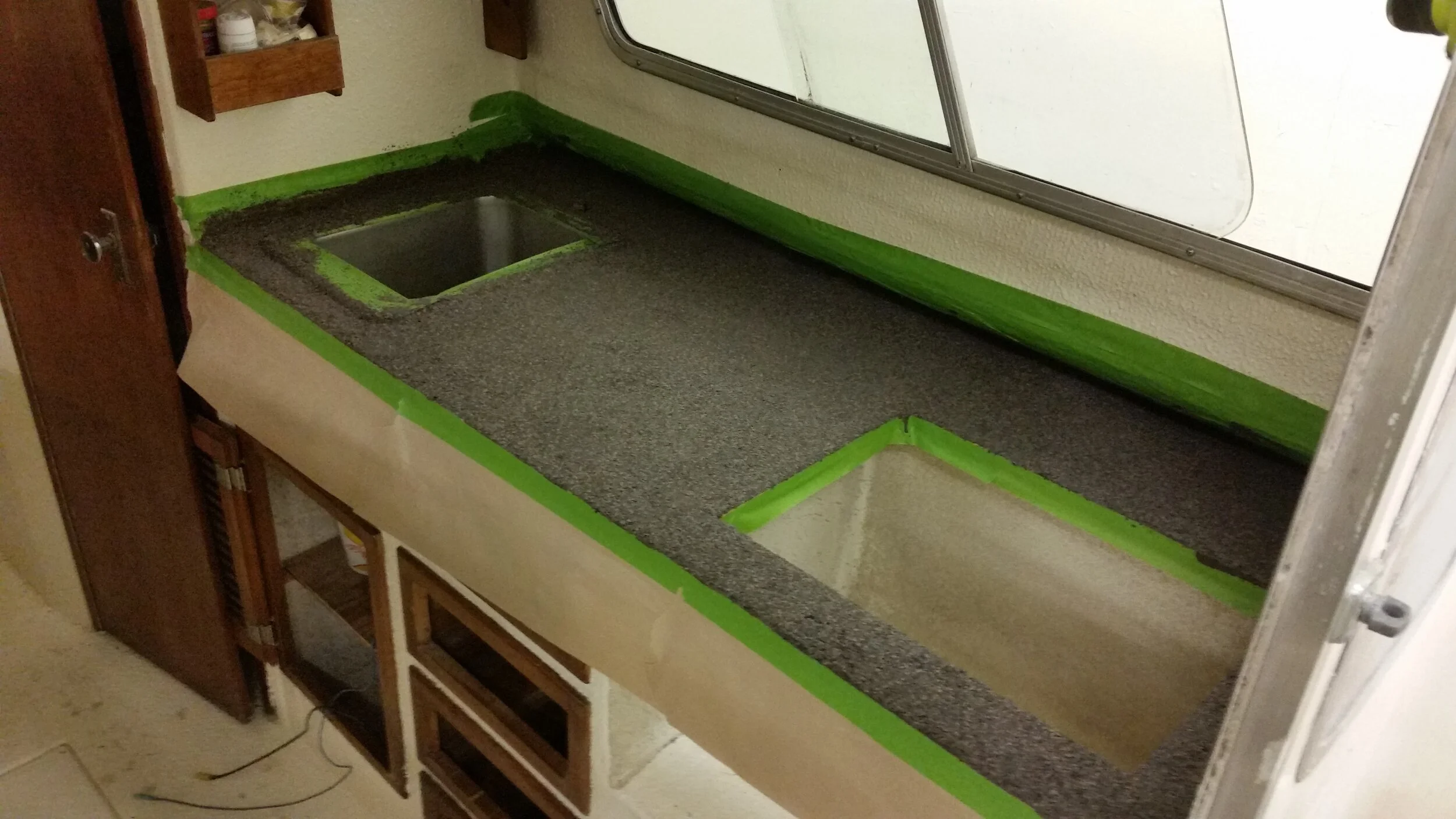

Rebuilding the counter top

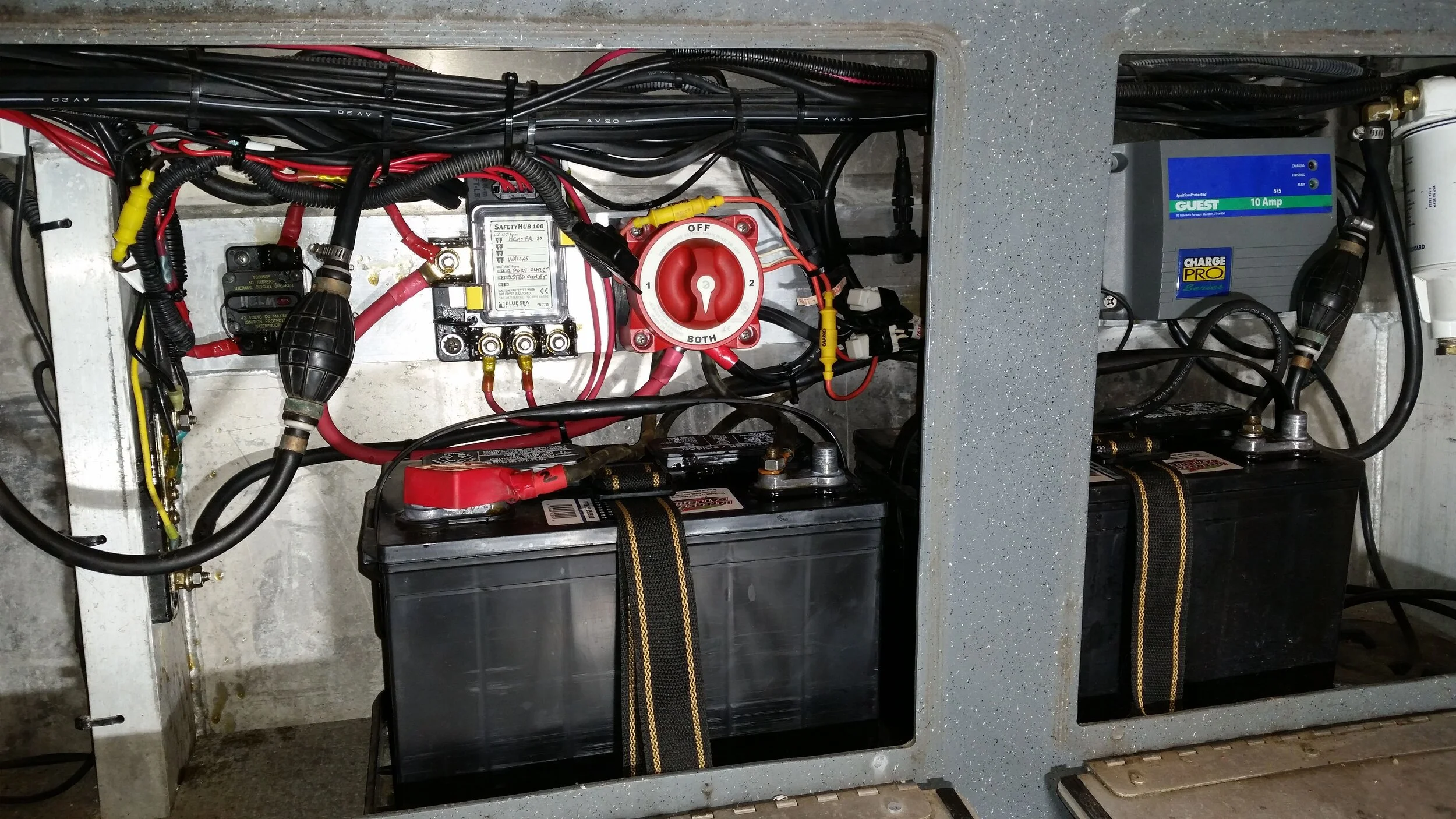

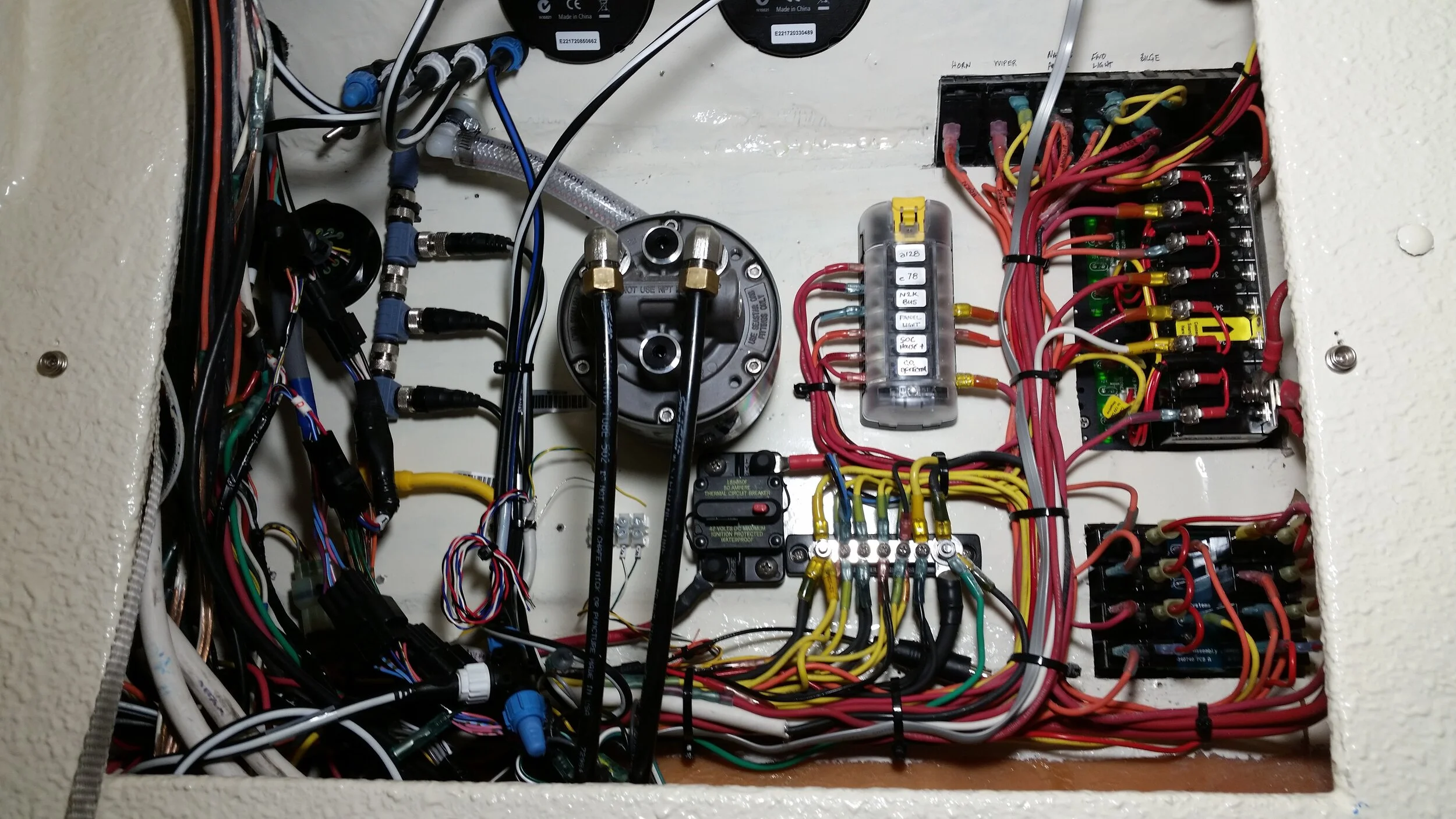

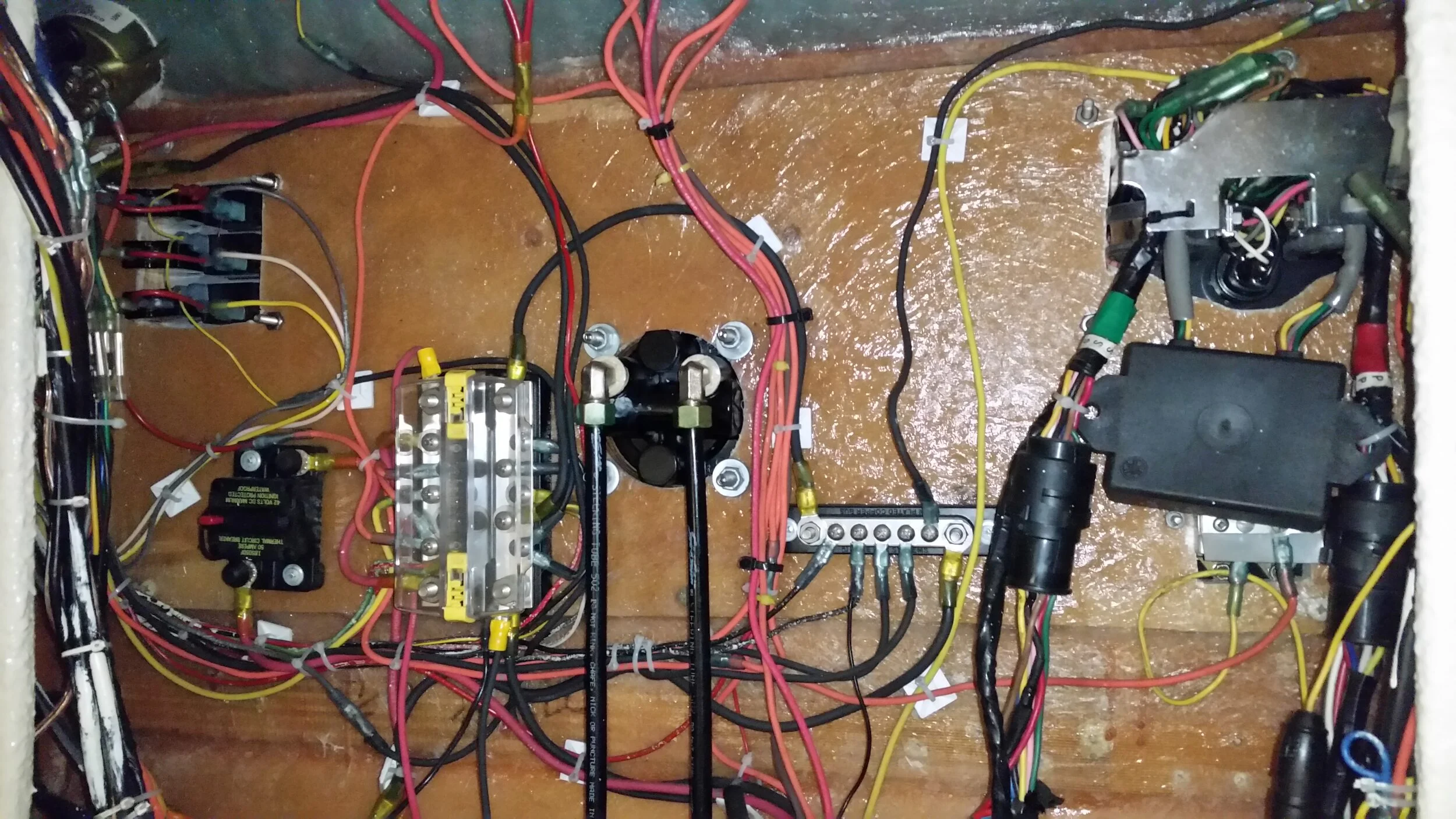

Aft wiring clean-up complete. New fuse block for down riggers and easy, single connections for battery removal.
Making sausage is not pretty, just like a nav upgrade.
Upgraded Garmin MFD with internal sounder.

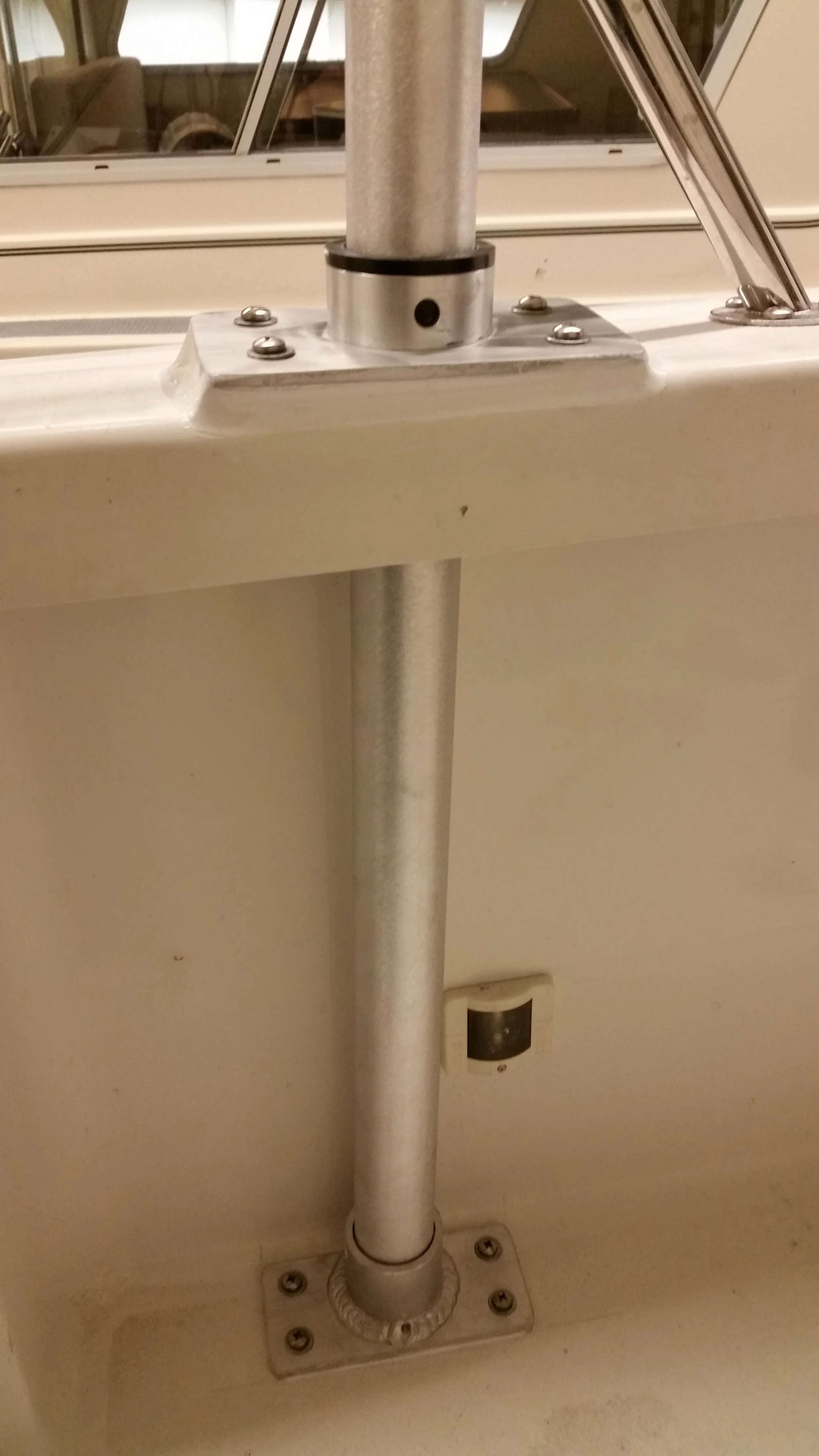

Davit installation with deck step and gunnel sleeve that has been faired to blend in while keeping the davit plumb.

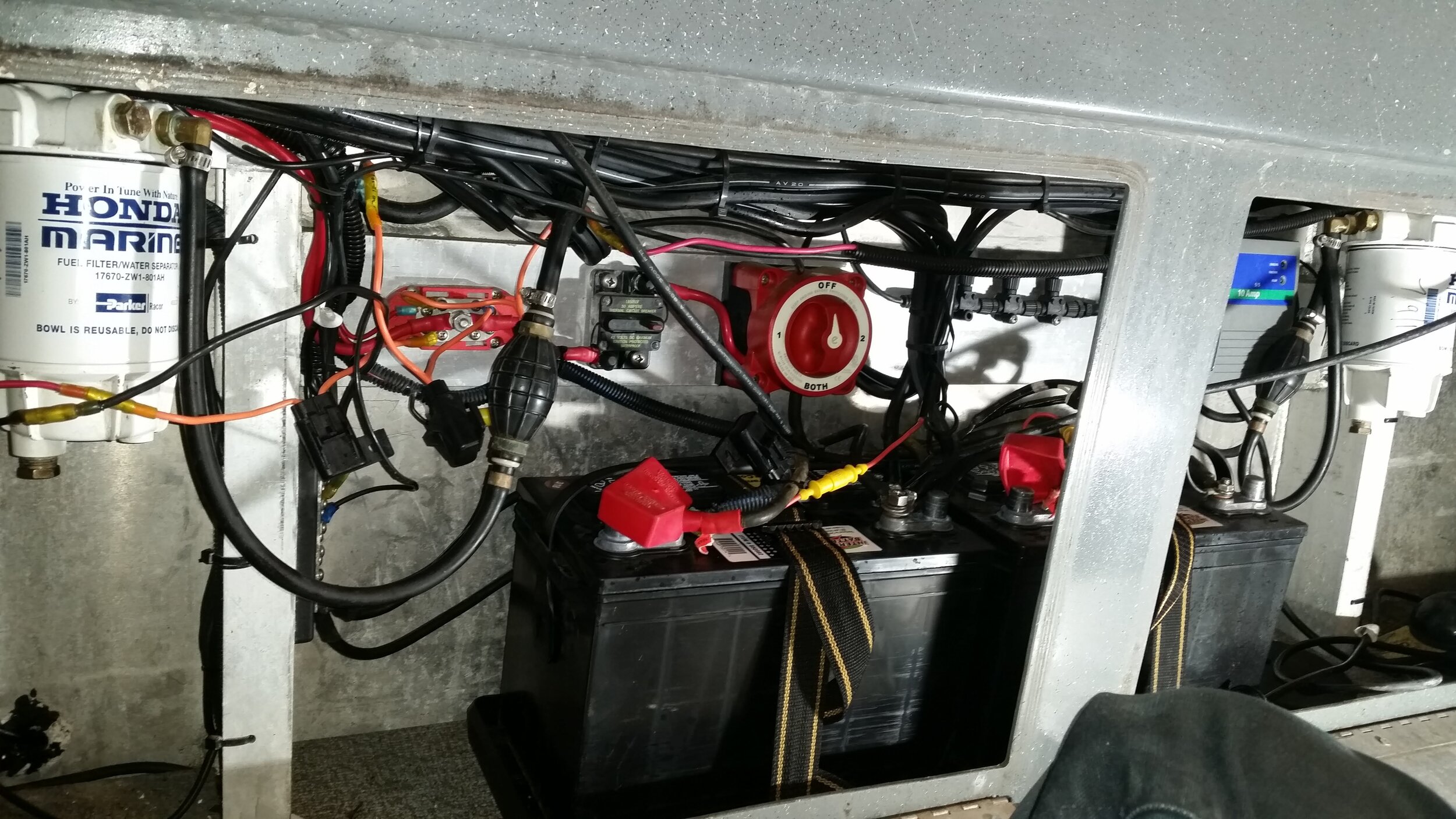

Aft wiring pre-job

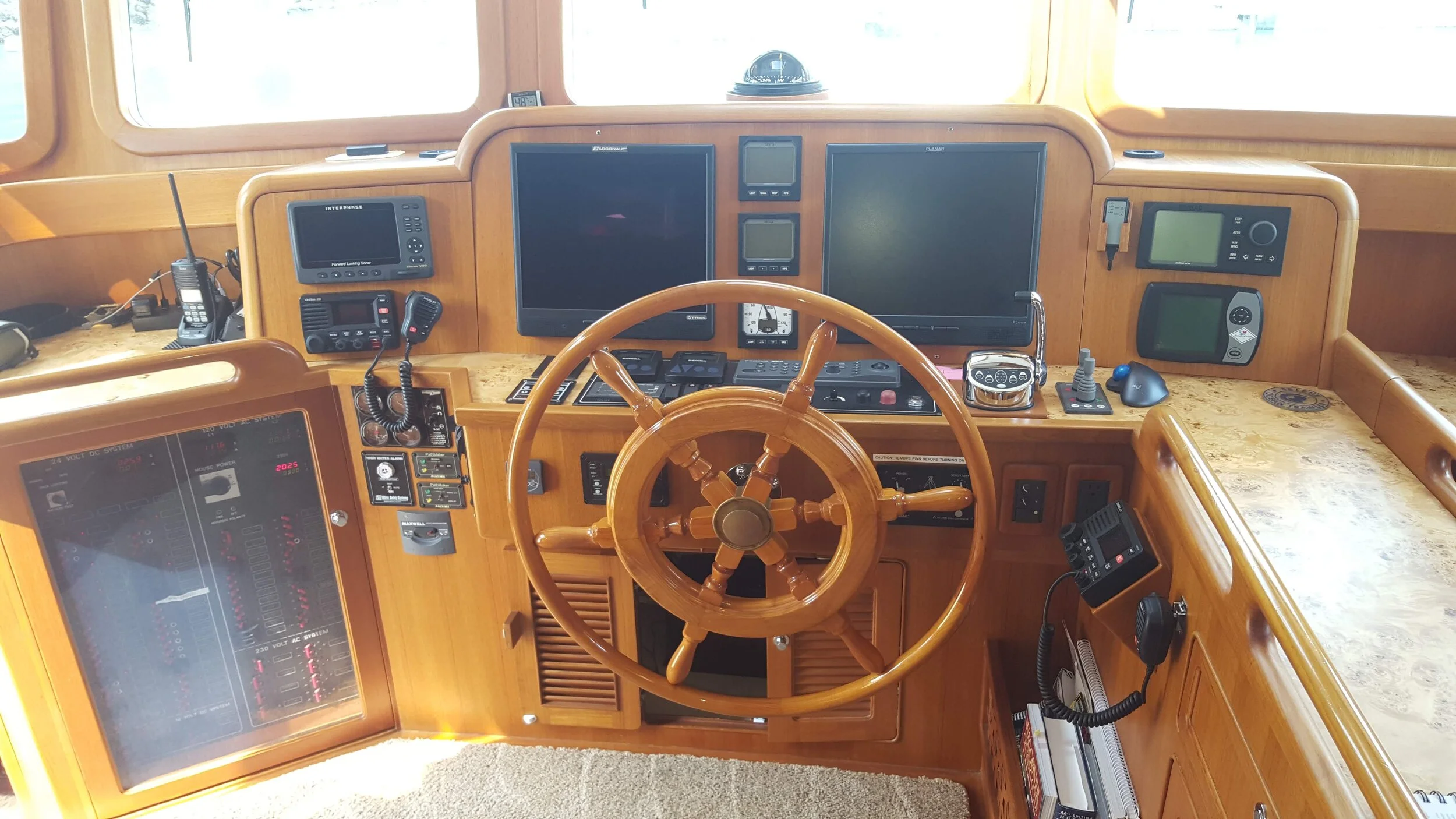

Original bridge helm, pre-project
Added a multi-beam transducer for 3D

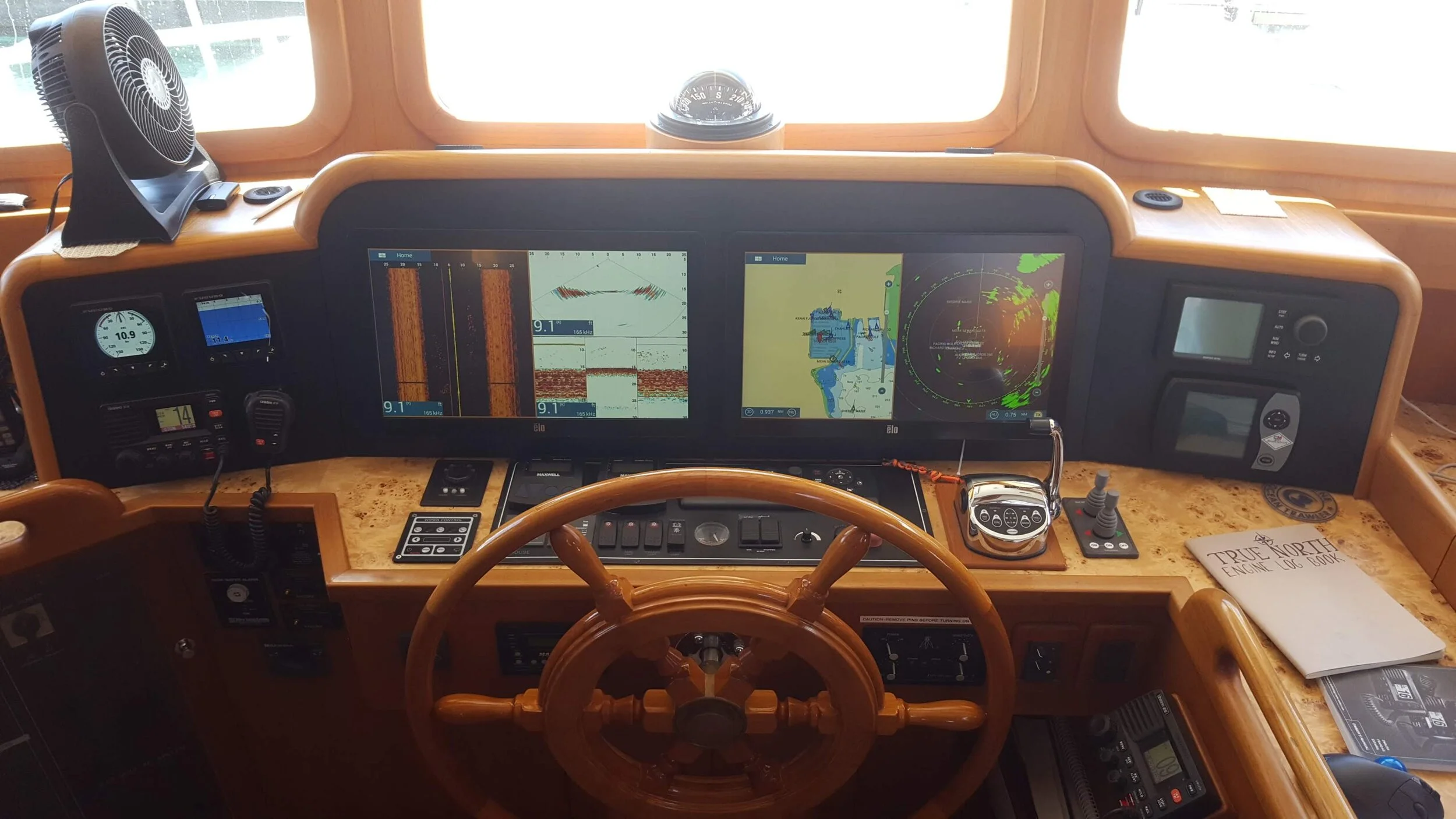

New TZT2BB system with touch screens, dual radars, sonar, and network integration for backup laptop nav system.

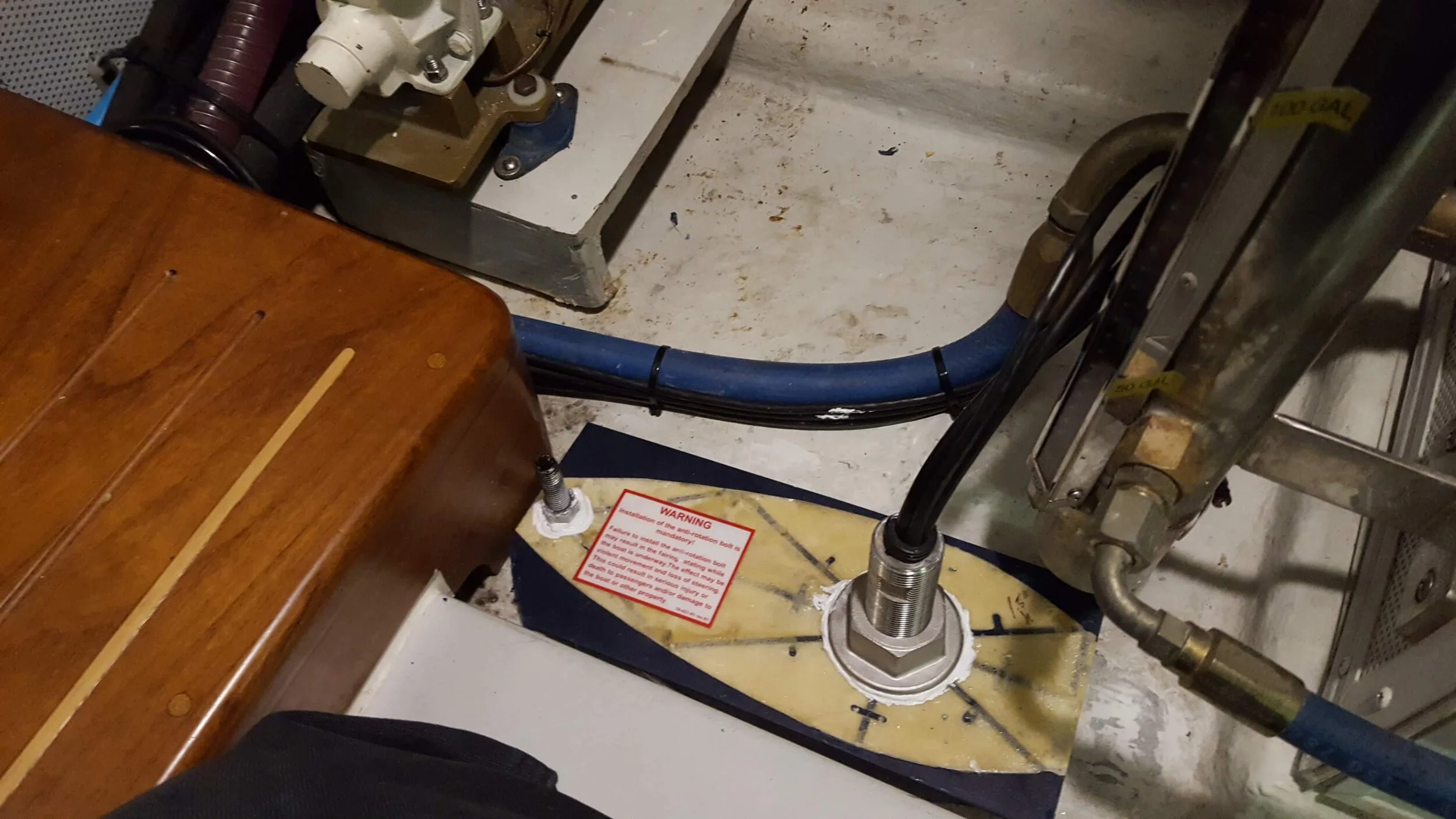

Added a pair of multi-beam transducers port/starboard and a flush faced CHIRP low frequency 1kW transducer, faired to the hull. Excellent sounder performance and 180 deg coverage even with a deep keel.
